ECG analysis using Hilbert transform - R peak detect

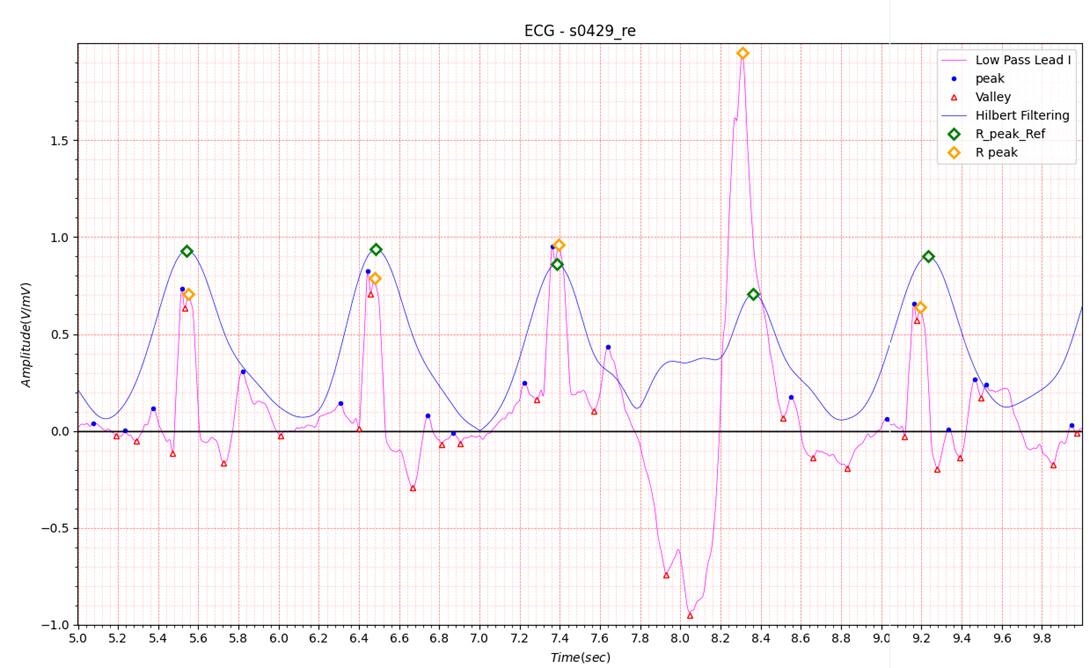

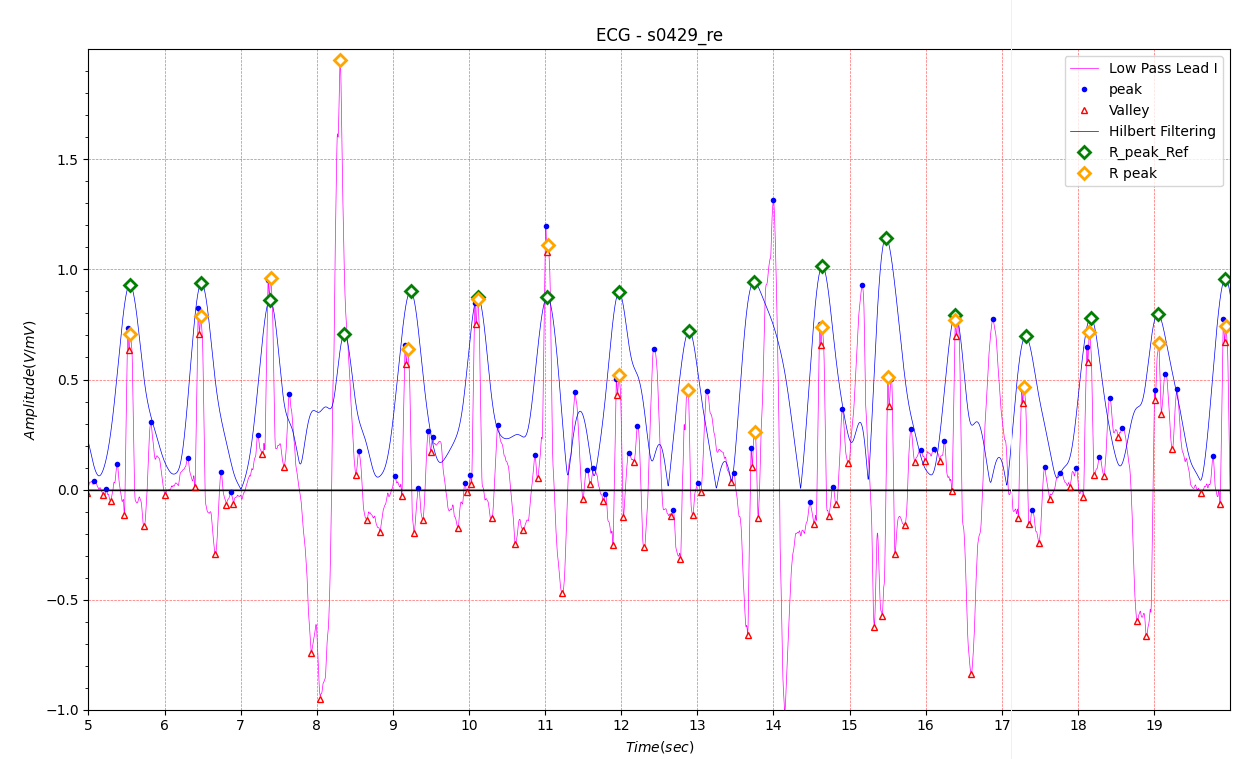

Figure1. s0429_re

# Reason for admission: Bundle branch block
# Acute infarction (localization): no
# Former infarction (localization): no
# Additional diagnoses: no

Figure1 looks complicated, so let’s split it into three graphs.

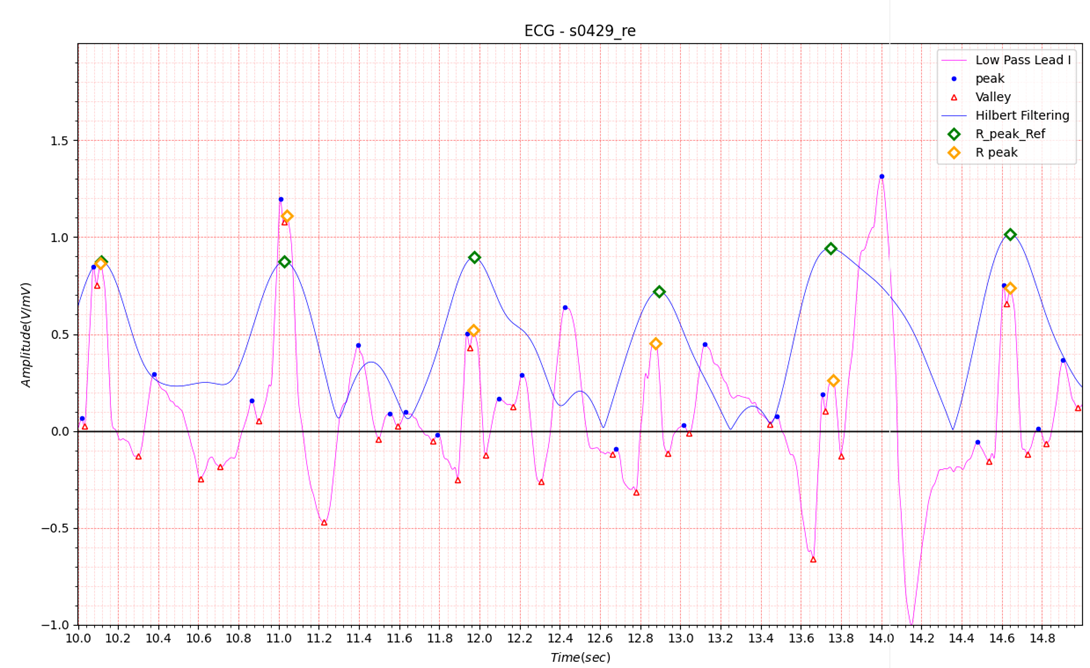

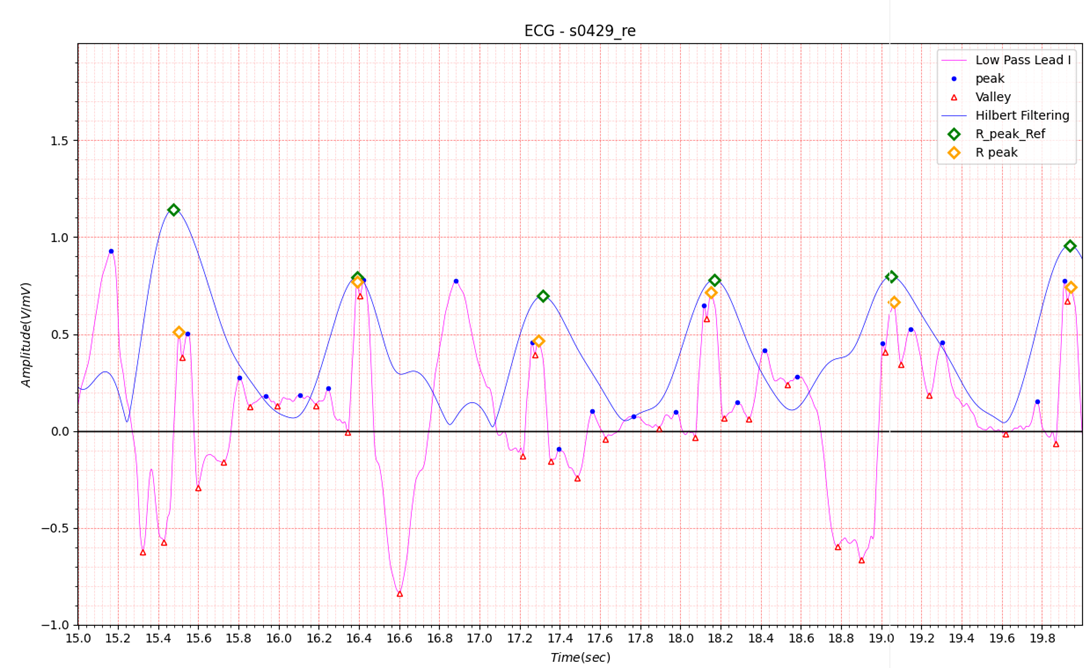

Figure2. s0429_re(5~10sec)

Figure3. s0429_re(10~15sec)

Figure4. s0429_re(15~20sec)

To confirm that the R peak shown in the three graphs above was properly detected, V3 was overlaid on the following graph. In a 12-lead system, if there is a lead that is difficult to determine, other leads can be referred to, but in a system that uses a single lead, such as a smart watch, it is difficult to accurately find the R peak.

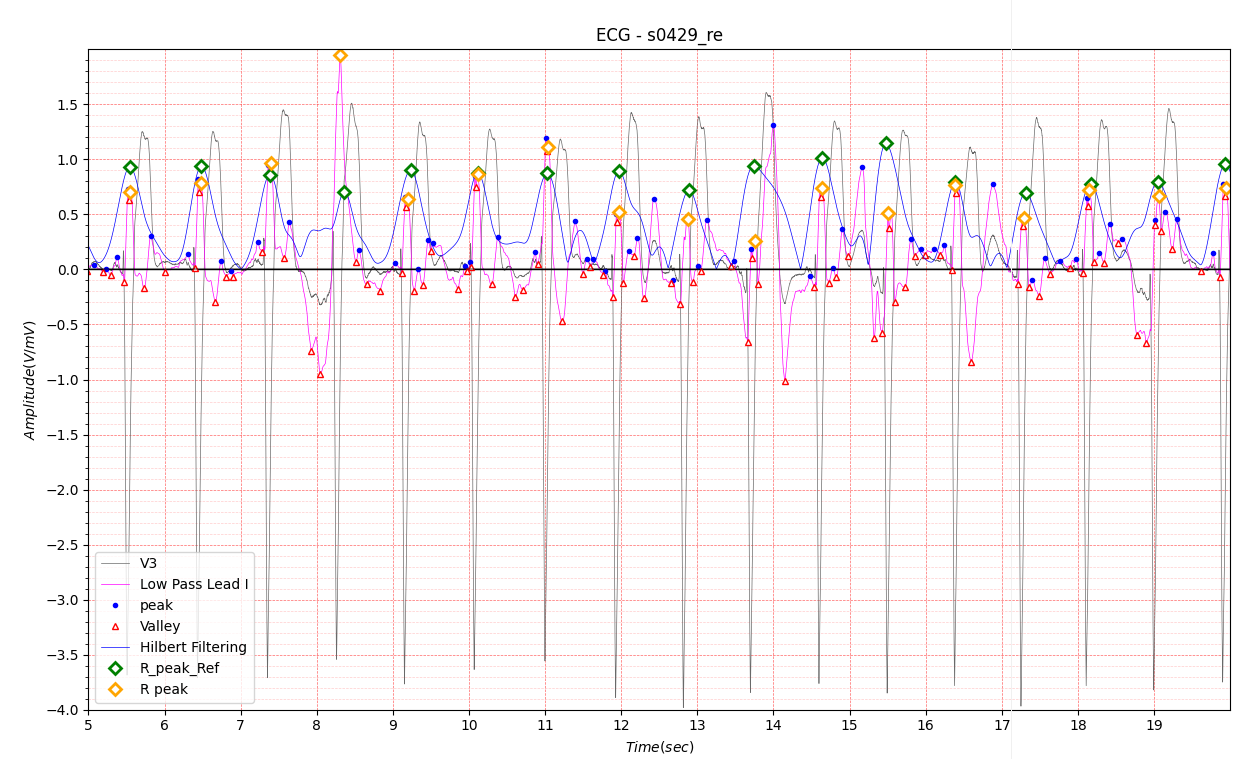

Figure5. s0429_re Lead Ⅰ&Ⅴ

Some examples are added as below.

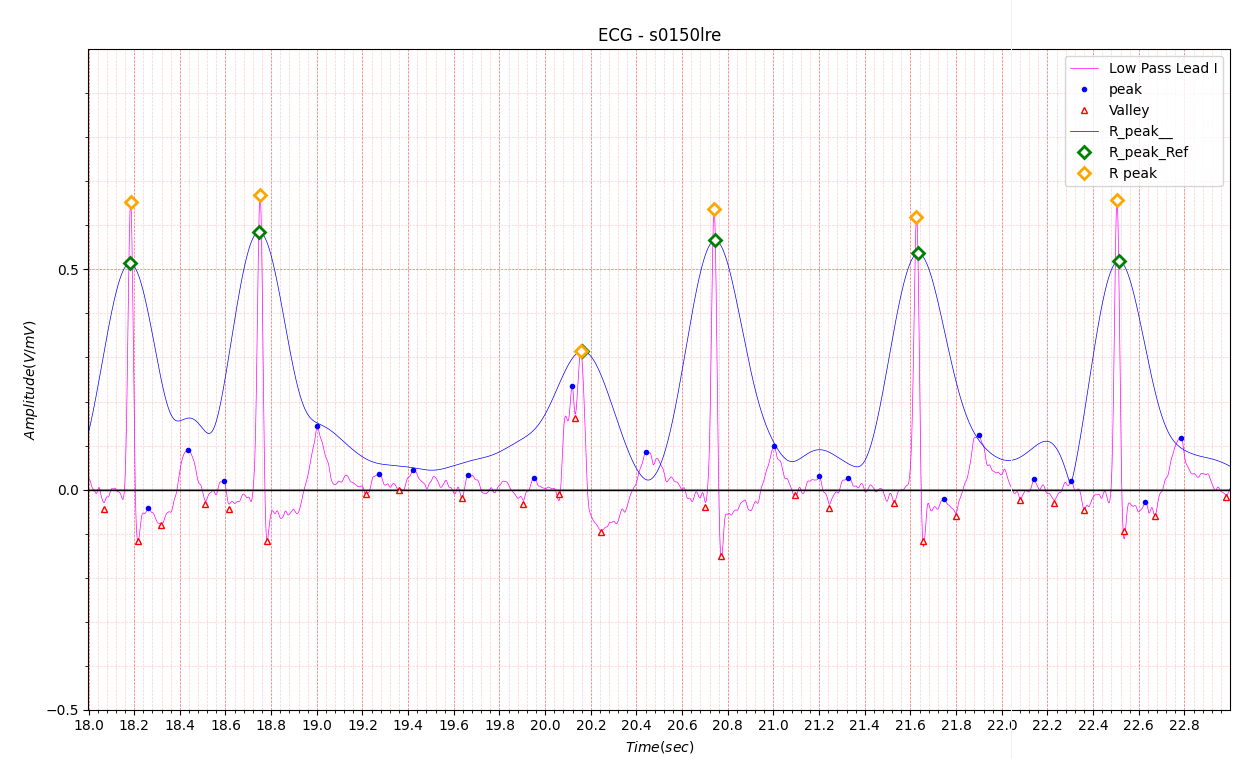

Figure6. s0150lre

# Reason for admission: Myocardial infarction
# Acute infarction (localization): antero-septal
# Former infarction (localization): no
# Additional diagnoses: Diabetes mellitus, Arterial hypertension

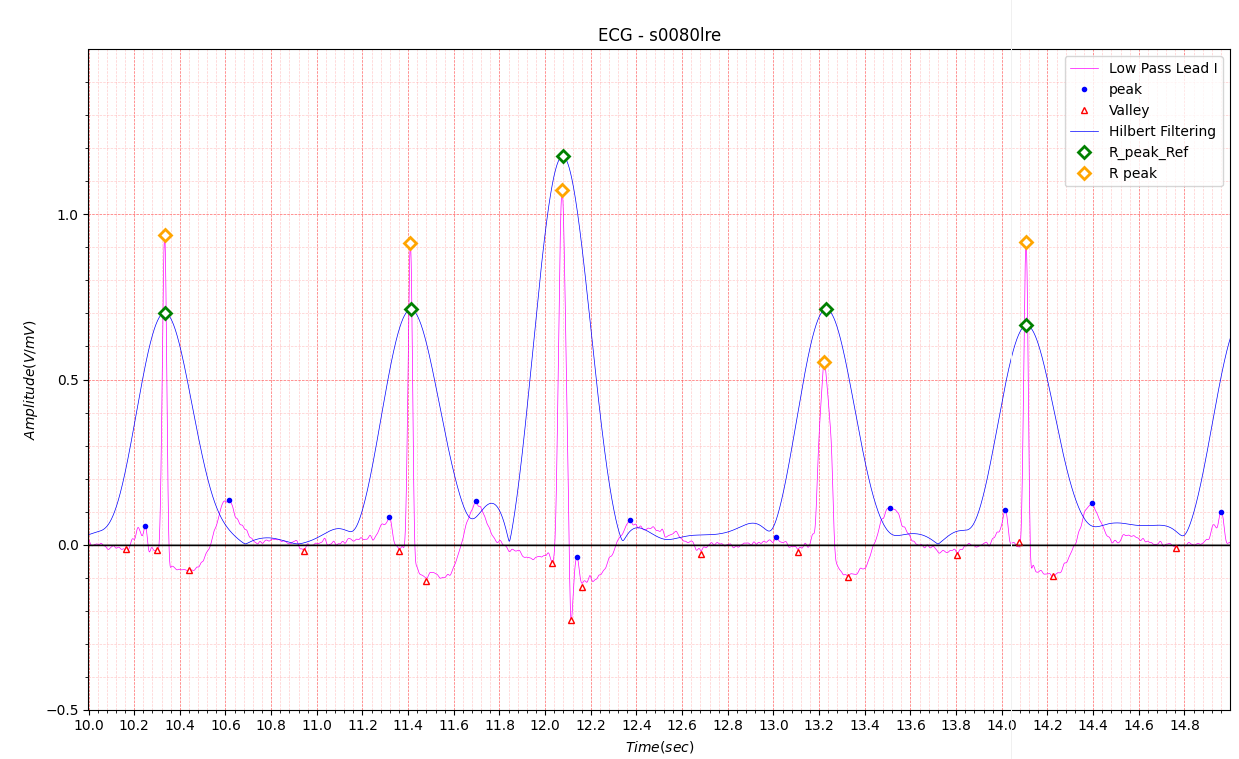

Figure7. s0080lre

# Reason for admission: Myocardial infarction
# Acute infarction (localization): inferior
# Former infarction (localization): no
# Additional diagnoses: Hypercholesterinemia, peripheral atherosclerosis

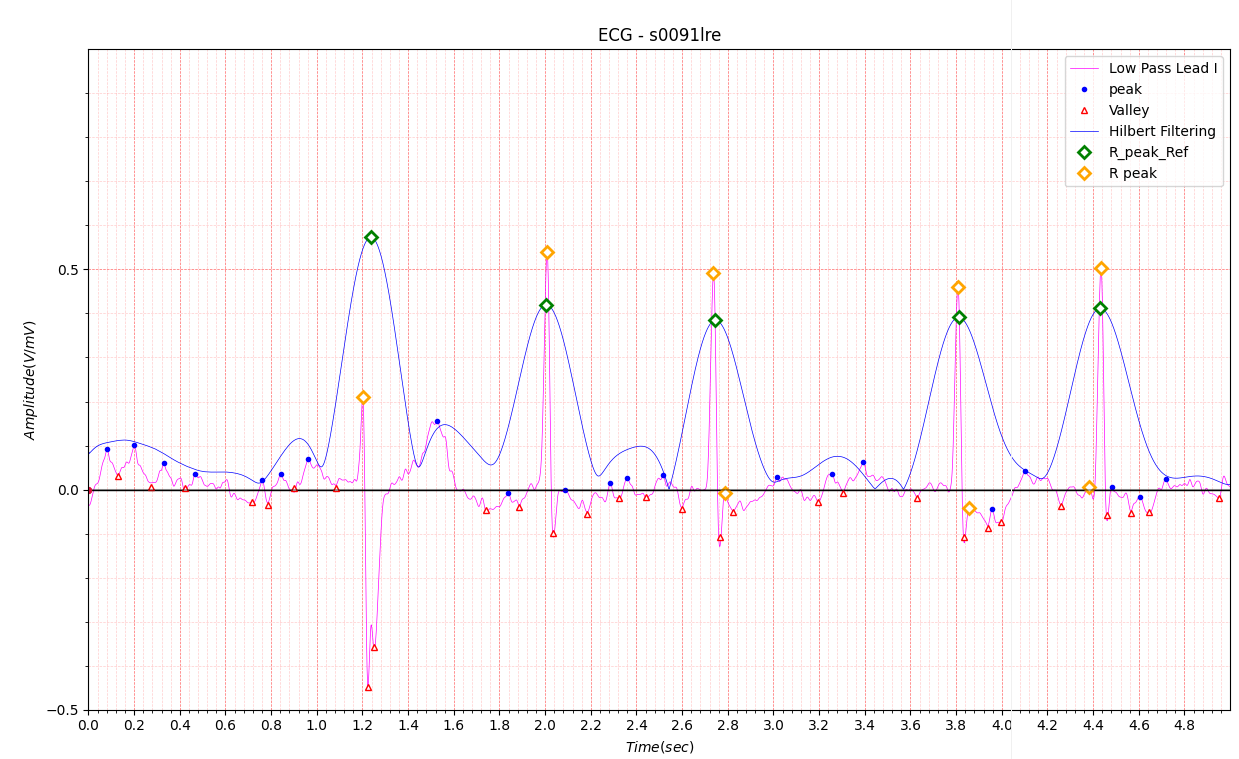

Figure8. s0091lre

# Reason for admission: Myocardial infarction
# Acute infarction (localization): antero-septal
# Former infarction (localization): no
# Additional diagnoses: Diabetes mellitus, Arterial hypertension

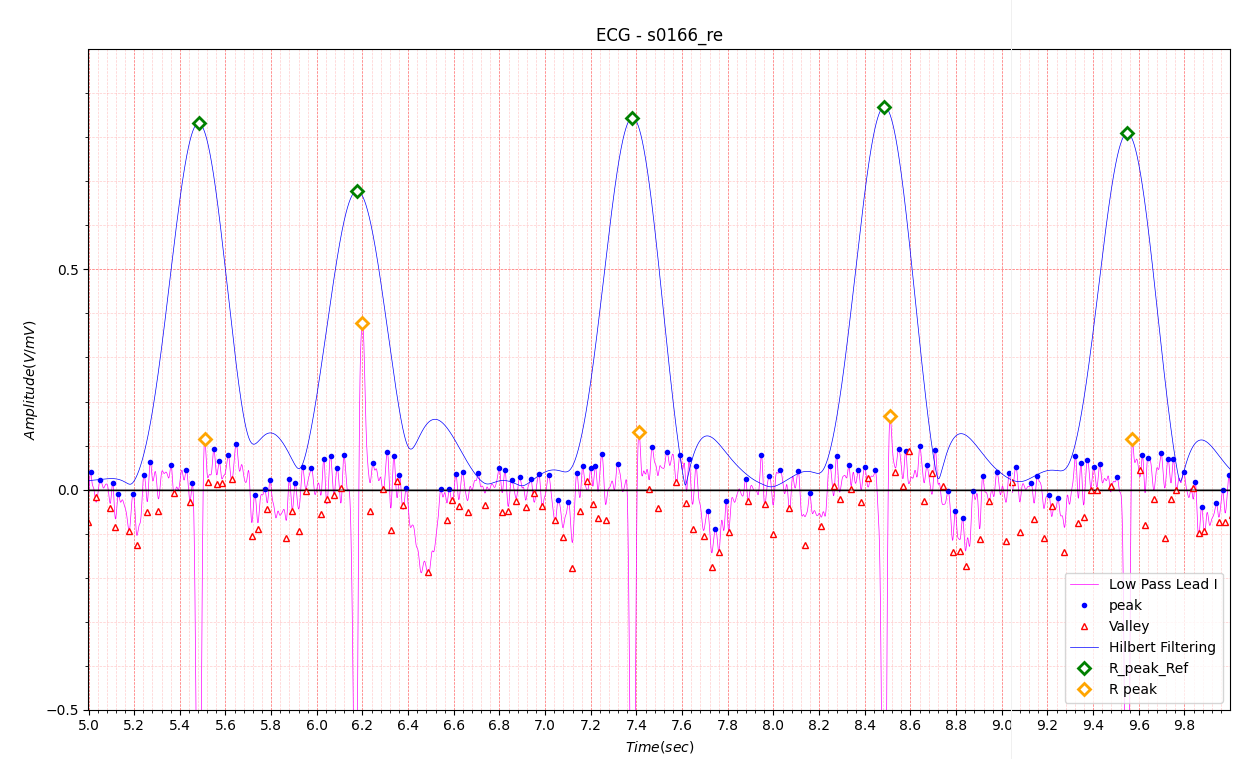

Figure9. s0166_re

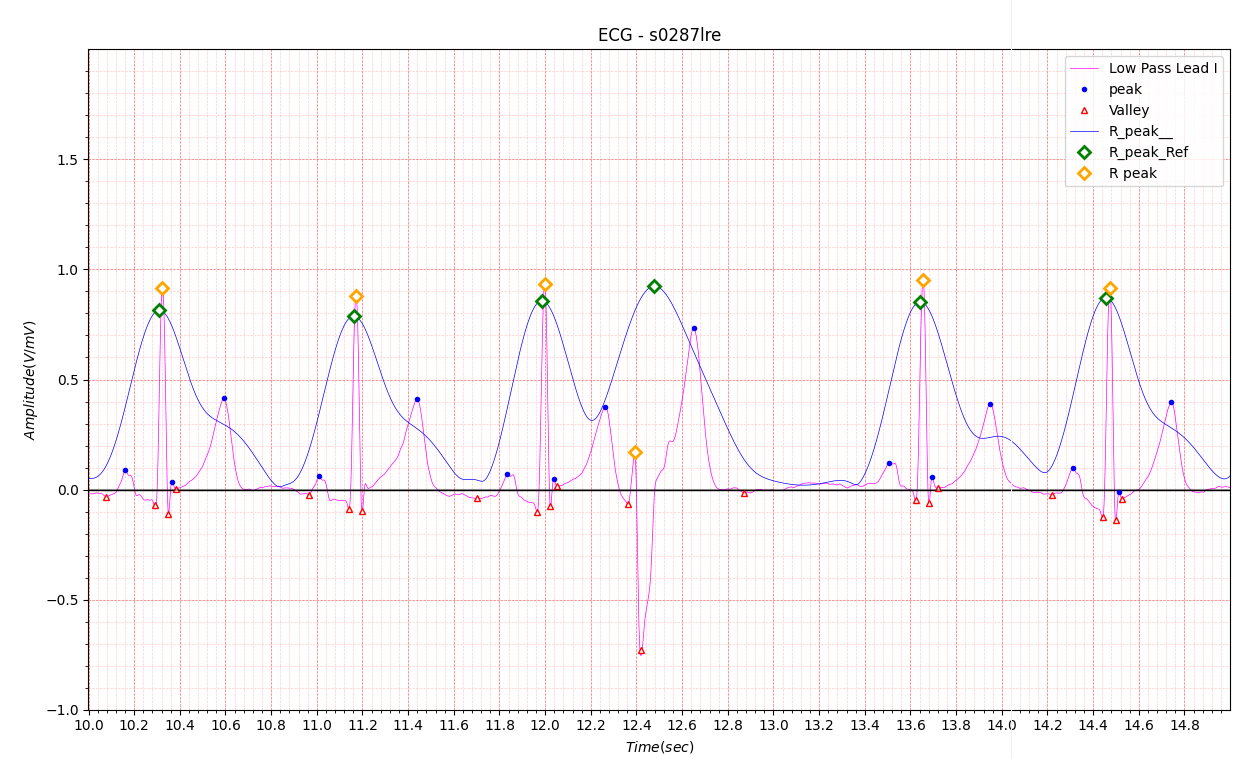

Figure10. s0287lre

Electrocardiogram database of PTB(Physikalisch-Technische Bundesanstalt:https://www.ptb.de/cms/en.html) is used for electrocardiogram analysis.

As a result of testing the following items for R peak detection, there were no R peak detection errors as a result of testing on 33 seconds of data for each item.

# Myocardial infarction 148
# Cardiomyopathy/Heart failure 18
# Bundle branch block 15
# Dysrhythmia 14
