ECG Diagnosis s/w Development Process

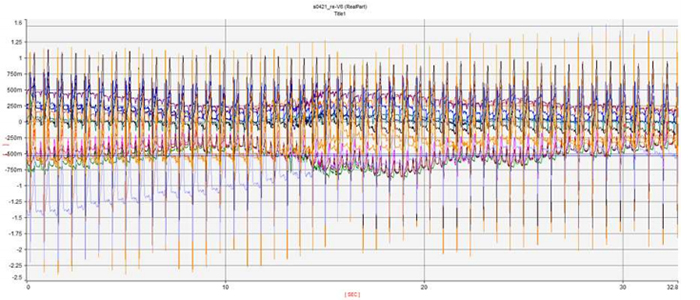

ECG 12 Lead with Base Line Wander
Electrocardiogram data contains dc without frequency components, which is an obstacle in
analyzing ECG data.
-> Remove using a high-pass filter.

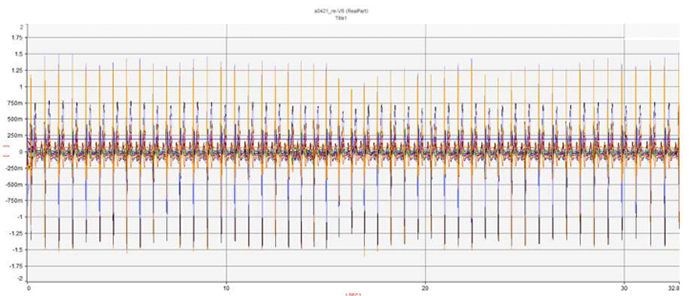

ECG 12 Lead remove Base Line Wander

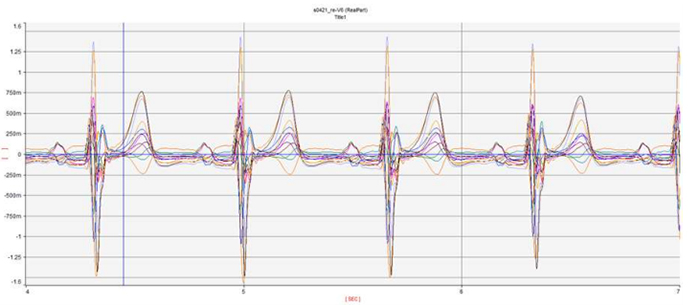

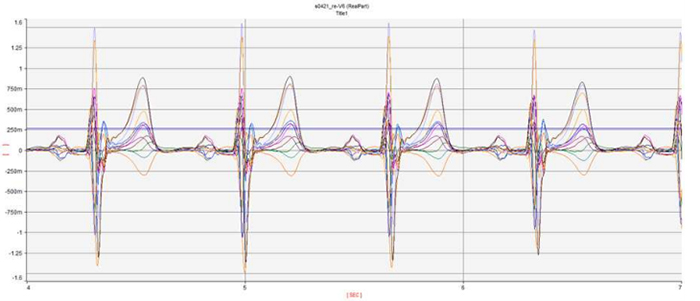

ECG 12 Lead Fit Base Line

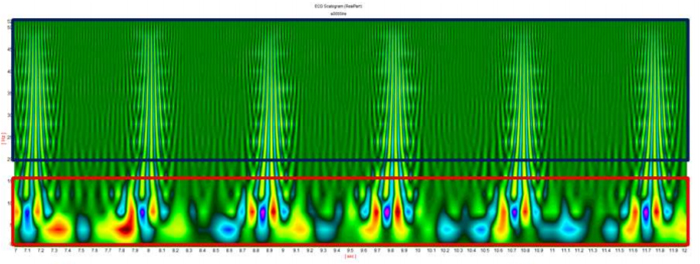

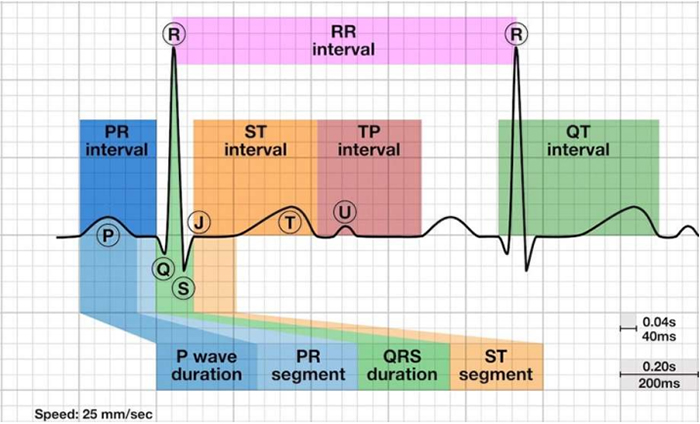

Filtering for R.T and P peak
■
Filters for P T Detection / Center Frequency=10 Hz / Band width=12 Hz
■
Filter for R Detection / Center Frequency=36 Hz / Band width=34 Hz
■
Filters for P T Detection / Center Frequency=10 Hz / Band width=12 Hz
■
Filter for R Detection / Center Frequency=36 Hz / Band width=34 Hz
